Journal2016Elsevier

Wearable battery-less wireless sensor network with electromagnetic energy harvesting system

Salar Chamanian, Hasan Uluşan, Özge Zorlu, Sajjad Baghaee, Elif Uysal-Bıyıkoğlu, Haluk Külah

Sensors and Actuators A: Physical

Official publicationDOI

Abstract

This paper presents a battery-less wireless sensor network (WSN) equipped with electromagnetic (EM) energy harvesters and sensor nodes with adjustable time-interval based on stored the energy. A wearable EM energy harvesting system is developed and optimized to power-up a typical wireless sensor mote from body motion. This is realized through characterization of the body motion and design of a compact EM energy harvester according to vibration frequencies generated during human running and walking. The harvesting system provides self-initiating and regulated supply voltage through rectifying, charging buffer capacitance, and buck DC-DC converter. The proposed system provides maintenance-free operation and adjustment of the sensing-rate according to jogger activity. It is shown that energy-level-based adjustment of the sensing and transmitting time-interval can prolong the lifetime of the battery-less sensor node. It is experimentally demonstrated that the presented WSN measurement nodes provide reliable and long-term operation as attached to human body, proving the feasibility of the system as a wearable battery-less sensor network.

Selected figures

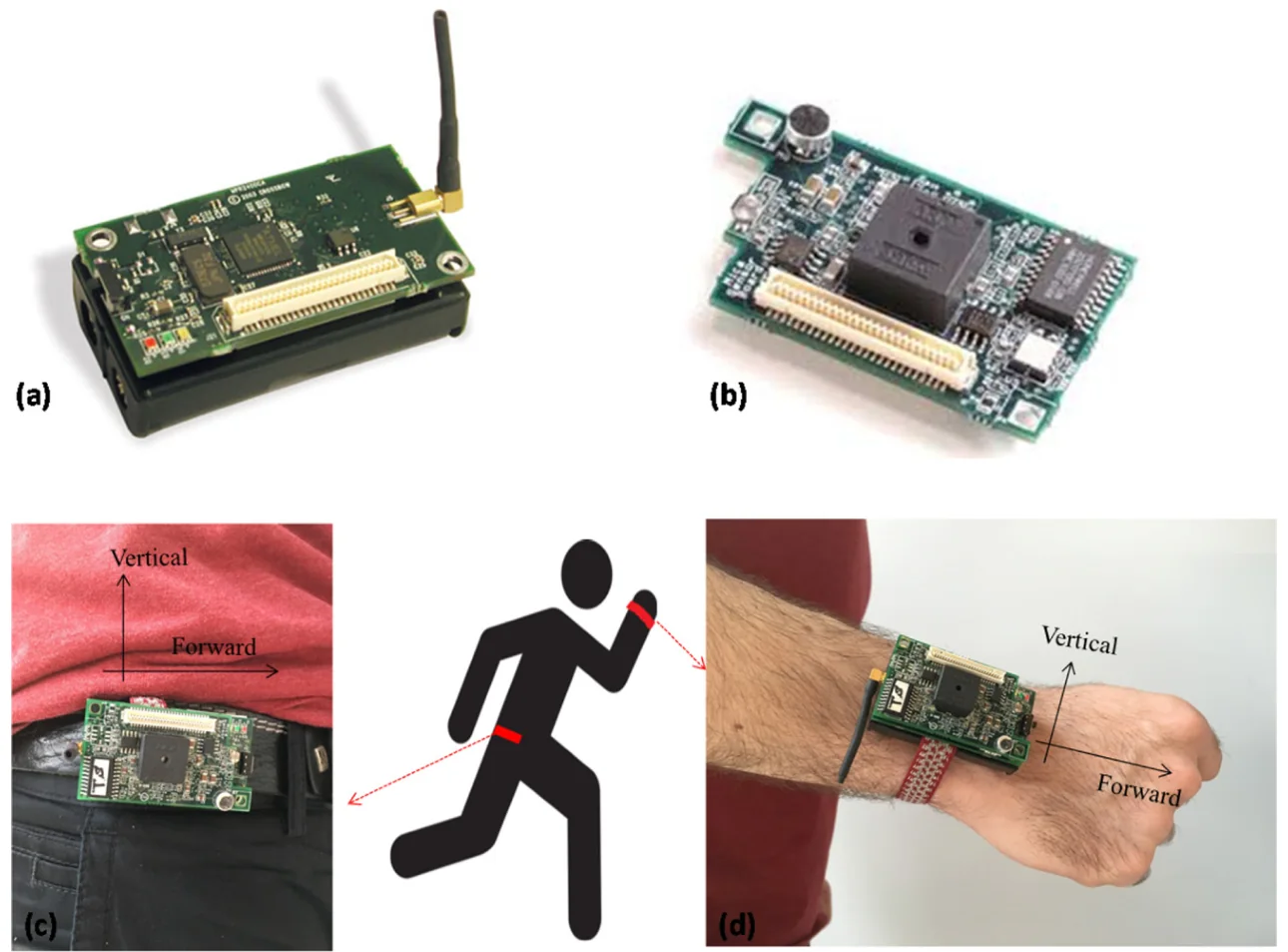

Figure 1 from “Wearable battery-less wireless sensor network with electromagnetic energy harvesting system”: MicaZ mote (a) and MTS 310CB sensor board (b) utilized for measurement of acceleration from the running test at (c) waist and (d) wrist points
Fig. 1 · MicaZ mote (a) and MTS 310CB sensor board (b) utilized for measurement of acceleration from the running test at (c) waist and (d) wrist points.
Reproduced from: S. Chamanian et al., “Wearable battery-less wireless sensor network with electromagnetic energy harvesting system,” Sensors and Actuators A: Physical, 2016. View the original publication.

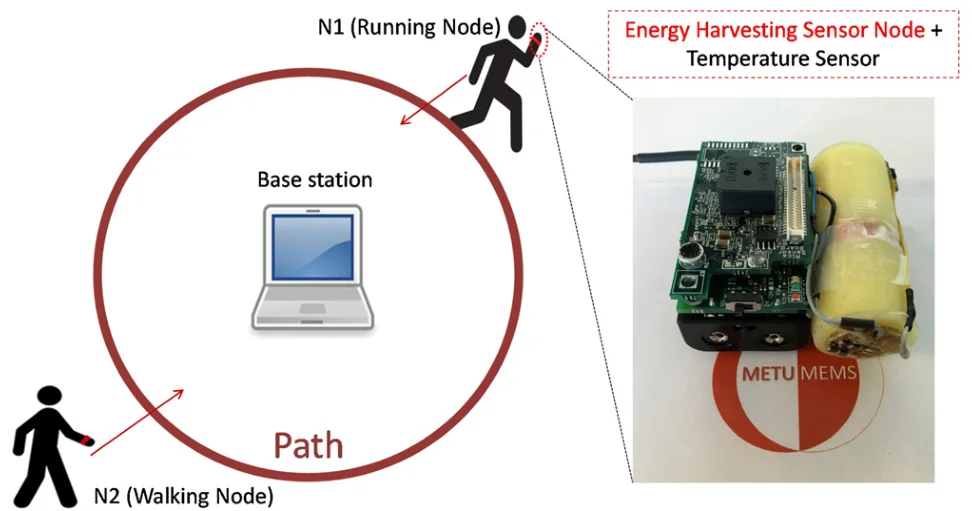

Figure 10 from “Wearable battery-less wireless sensor network with electromagnetic energy harvesting system”: Monitoring setup of the WSN and EM energy harvesting sensor node
Fig. 10 · Monitoring setup of the WSN and EM energy harvesting sensor node.
Reproduced from: S. Chamanian et al., “Wearable battery-less wireless sensor network with electromagnetic energy harvesting system,” Sensors and Actuators A: Physical, 2016. View the original publication.

Cite this work

Plain text

S. Chamanian, H. Uluşan, Ö. Zorlu, S. Baghaee, E. Uysal-Bıyıkoğlu and H. Külah, "Wearable battery-less wireless sensor network with electromagnetic energy harvesting system," Sensors and Actuators A: Physical, vol. 249, pp. 77-84, 2016. doi: 10.1016/j.sna.2016.07.020.

BibTeX
@article{chamanian2016wearable,
  author  = {Chamanian, Salar and Uluşan, Hasan and Zorlu, Özge and Baghaee, Sajjad and Uysal-Bıyıkoğlu, Elif and Külah, Haluk},
  title   = {Wearable battery-less wireless sensor network with electromagnetic energy harvesting system},
  journal = {Sensors and Actuators A: Physical},
  volume  = {249},
  pages   = {77-84},
  year    = {2016},
  doi     = {10.1016/j.sna.2016.07.020},
  url     = {https://www.sciencedirect.com/science/article/pii/S0924424716303521}
}
