Journal2014MDPI

Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System

Salar Chamanian, Sajjad Baghaee, Hasan Uluşan, Özge Zorlu, Haluk Külah, Elif Uysal-Bıyıkoğlu

Energies

Official publicationDOI

Abstract

This paper presents a wireless sensor node (WSN) system where an electromagnetic (EM) energy harvester is utilized for charging its rechargeable batteries while the system is operational. The capability and the performance of an in-house low-frequency EM energy harvester for charging rechargeable NiMH batteries were experimentally verified in comparison to a regular battery charger. Furthermore, the power consumption of MicaZ motes, used as the WSN, was evaluated in detail for different operation conditions. The battery voltage and current were experimentally monitored during the operation of the MicaZ sensor node equipped with the EM vibration energy harvester. A compact (24.5 cm3) in-house EM energy harvester provides approximately 65 µA charging current to the batteries when excited by 0.4 g acceleration at 7.4 Hz. It has been shown that the current demand of the MicaZ mote can be compensated for by the energy harvester for a specific low-power operation scenario, with more than a 10-fold increase in the battery lifetime. The presented results demonstrate the autonomous operation of the WSN, with the utilization of a vibration-based energy harvester.

Selected figures

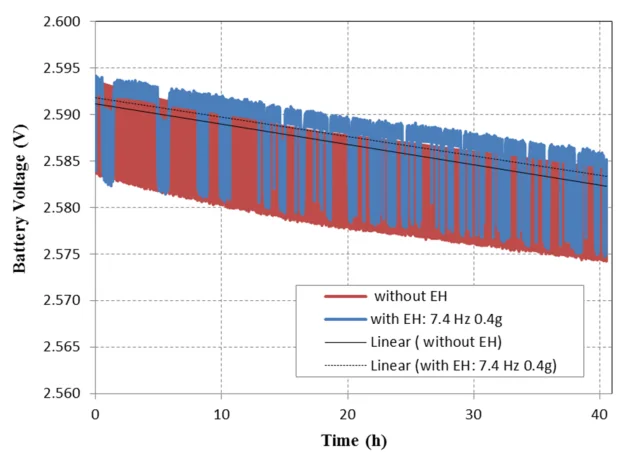

Figure 13 from “Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System”: Discharging profile of the batteries in the operation of the MicaZ mote with a 20-s task execution time; the energy harvester is excited with 7.4 Hz frequency and 0.4 g acceleration
Fig. 13 · Discharging profile of the batteries in the operation of the MicaZ mote with a 20-s task execution time; the energy harvester is excited with 7.4 Hz frequency and 0.4 g acceleration.
Reproduced from: S. Chamanian et al., “Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System,” Energies, 2014. View the original publication.

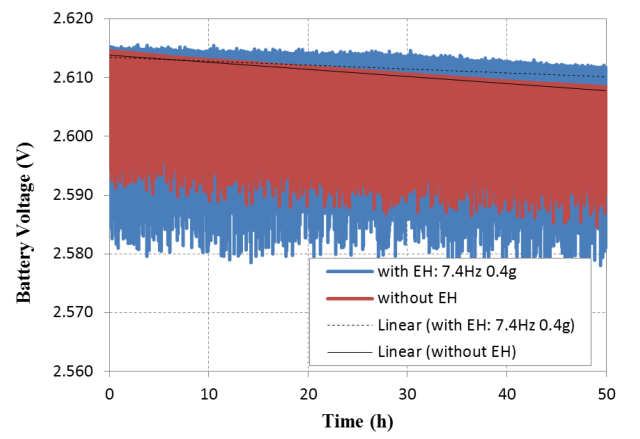

Figure 14 from “Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System”: Discharging profile of the batteries in the operation of the MicaZ mote with a 1-min task execution time; the energy harvester is excited with 7.4 Hz frequency and 0.4 g acceleration
Fig. 14 · Discharging profile of the batteries in the operation of the MicaZ mote with a 1-min task execution time; the energy harvester is excited with 7.4 Hz frequency and 0.4 g acceleration.
Reproduced from: S. Chamanian et al., “Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System,” Energies, 2014. View the original publication.

Cite this work

Plain text

S. Chamanian, S. Baghaee, H. Uluşan, Ö. Zorlu, H. Külah and E. Uysal-Bıyıkoğlu, "Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System," Energies, vol. 7, no. 10, pp. 6323-6339, 2014. doi: 10.3390/en7106323.

BibTeX
@article{chamanian2014poweringup,
  author  = {Chamanian, Salar and Baghaee, Sajjad and Uluşan, Hasan and Zorlu, Özge and Külah, Haluk and Uysal-Bıyıkoğlu, Elif},
  title   = {Powering-up Wireless Sensor Nodes Utilizing Rechargeable Batteries and an Electromagnetic Vibration Energy Harvesting System},
  journal = {Energies},
  volume  = {7},
  number  = {10},
  pages   = {6323-6339},
  year    = {2014},
  doi     = {10.3390/en7106323},
  url     = {https://www.mdpi.com/1996-1073/7/10/6323}
}
