IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development

Mehmet Burak Hekimoğlu, Sajjad Baghaee, Asiye İrem Büyüker, Ilkay Ulusoy

2025 33rd Signal Processing and Communications Applications Conference (SIU)

Official publicationDOI

Abstract

This paper presents a multi-speed rule-based controller for HVAC and ventilation management, evaluated in simulation and prepared for real-world deployment. The controller uses real-time environmental data and predefined thresholds to dynamically adjust fan speeds, balancing air quality and thermal comfort. Compared to conventional rule-based methods, it achieves more stable indoor conditions and improved occupant comfort, while maintaining comparable energy performance. The algorithm is validated in an EnergyPlus simulation of a 100 m2 space. Results show that the approach offers a reliable, low-overhead solution for efficient climate control, and is well-suited for integration into future smart building applications.

Selected figures

Figure 1 from “IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development”: System Diagram of Rule-Based Controller

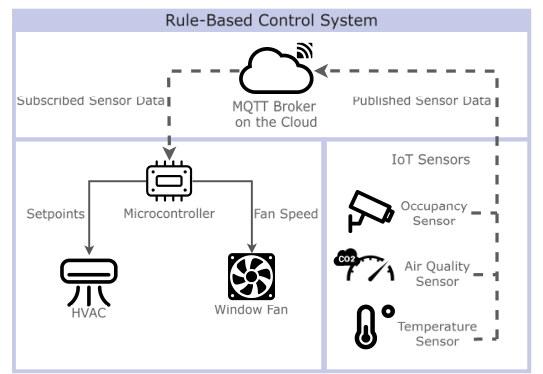

Fig. 1 · System Diagram of Rule-Based Controller.
Reproduced from: M. B. Hekimoğlu et al., “IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development,” 2025 33rd Signal Processing and Communications Applications Conference (SIU), 2025. View the original publication.
Figure 2 from “IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development”: Comparison of CO2 Concentration of the Room with Different Algorithms

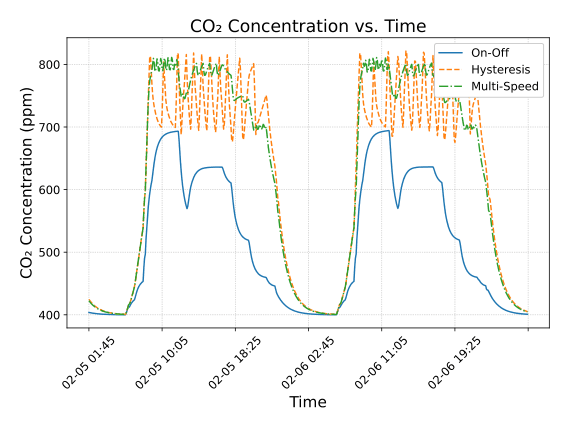

Fig. 2 · Comparison of CO2 Concentration of the Room with Different Algorithms.
Reproduced from: M. B. Hekimoğlu et al., “IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development,” 2025 33rd Signal Processing and Communications Applications Conference (SIU), 2025. View the original publication.

Cite this work

Plain text

M. B. Hekimoğlu, S. Baghaee, A. İ. Büyüker and I. Ulusoy, "IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development," in 2025 33rd Signal Processing and Communications Applications Conference (SIU), pp. 1-4, 2025. doi: 10.1109/SIU66497.2025.11111868.

BibTeX
@inproceedings{hekimolu2025iotbased,
  author    = {Hekimoğlu, Mehmet Burak and Baghaee, Sajjad and Büyüker, Asiye İrem and Ulusoy, Ilkay},
  title     = {IoT-Based Multi-Speed HVAC Control: Simulation Results and Testbed Development},
  booktitle = {2025 33rd Signal Processing and Communications Applications Conference (SIU)},
  pages     = {1-4},
  publisher = {IEEE},
  year      = {2025},
  doi       = {10.1109/SIU66497.2025.11111868},
  url       = {https://ieeexplore.ieee.org/abstract/document/11111868}
}
