Conference2025IEEE

Duty Cycle Compatible Fresh Data Tranmission with LoRa

Also published as: LoRa ile Görev Döngüsü Kısıtına Uyumlu Taze Veri İletimi

Mevlüt Metin, Sude Özcan, Ayşe Betül Yıldırım, Sajjad Baghaee, Elif Uysal, Ayça Hande Erkün Osunluk

2025 33rd Signal Processing and Communications Applications Conference (SIU)

Official publicationDOI

Abstract

Low Power Wide Area Networks (LPWANs) using the ISM band are constrained by serious duty-cycle limitations in Europe and in various other parts of the world. This constraint particularly limits the freshness of IoT data that can be conveyed using these networks. Earlier literature introduced the Duty-Cycle Compliant Threshold ALOHA (DCCTA), that aims to optimize the age of information (AoI) in a duty-cycle constrained LPWAN setting. In this paper, we report on the implementation of a system where end nodes use DCCTA and LoRa-enabled end nodes. A custom gateway is implemented, to evaluate the performance of our protocol under two cases: end nodes receive or do not receive packet success feedback from the gateway. Measurement and simulation results both reveal that under duty-cycle constraints, skipping the feedback achieves significantly better efficiency and data freshness. Our findings, grounded in both simulation and practical implementation, underscore the potential of our protocol in reducing AoI under stringent duty-cycle regulations.

Selected figures

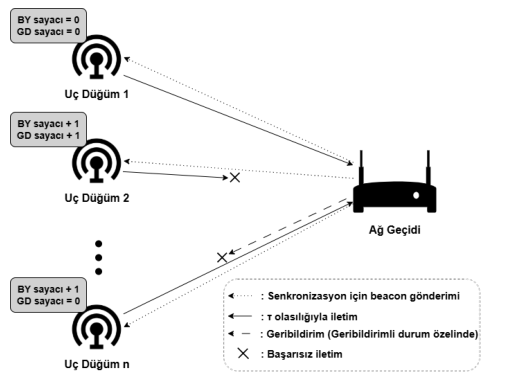

Figure 1 from “Duty Cycle Compatible Fresh Data Tranmission with LoRa”: Sistem Modeli
Fig. 1 · Sistem Modeli.
Reproduced from: M. Metin et al., “Duty Cycle Compatible Fresh Data Tranmission with LoRa,” 2025 33rd Signal Processing and Communications Applications Conference (SIU), 2025. View the original publication.

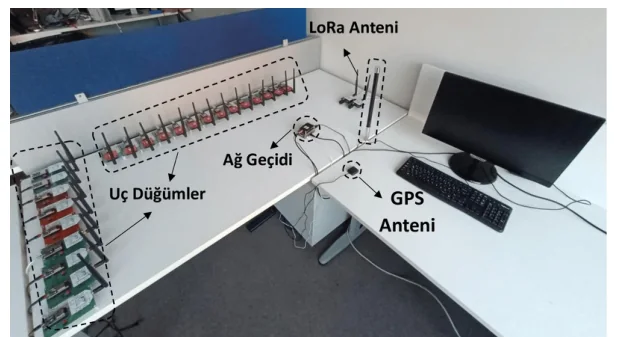

Figure 3 from “Duty Cycle Compatible Fresh Data Tranmission with LoRa”: Gerçekleme Ortamı
Fig. 3 · Gerçekleme Ortamı.
Reproduced from: M. Metin et al., “Duty Cycle Compatible Fresh Data Tranmission with LoRa,” 2025 33rd Signal Processing and Communications Applications Conference (SIU), 2025. View the original publication.

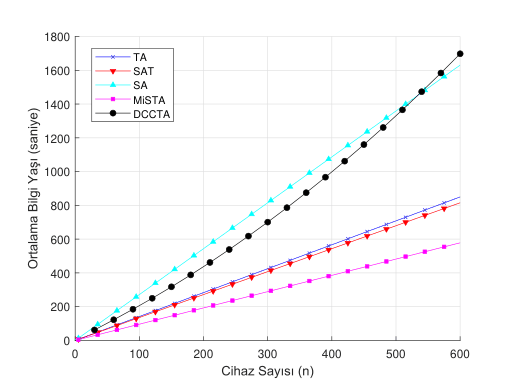

Figure 5 from “Duty Cycle Compatible Fresh Data Tranmission with LoRa”: Farklı rastgele eri¸sim politikaları için ortalama Bilgi Ya¸sı
Fig. 5 · Farklı rastgele eri¸sim politikaları için ortalama Bilgi Ya¸sı.
Reproduced from: M. Metin et al., “Duty Cycle Compatible Fresh Data Tranmission with LoRa,” 2025 33rd Signal Processing and Communications Applications Conference (SIU), 2025. View the original publication.

Cite this work

Plain text

M. Metin, S. Özcan, A. B. Yıldırım, S. Baghaee, E. Uysal and A. H. E. Osunluk, "Duty Cycle Compatible Fresh Data Tranmission with LoRa," in 2025 33rd Signal Processing and Communications Applications Conference (SIU), pp. 1-4, 2025. doi: 10.1109/SIU66497.2025.11112205.

BibTeX
@inproceedings{metin2025duty,
  author    = {Metin, Mevlüt and Özcan, Sude and Yıldırım, Ayşe Betül and Baghaee, Sajjad and Uysal, Elif and Osunluk, Ayça Hande Erkün},
  title     = {Duty Cycle Compatible Fresh Data Tranmission with LoRa},
  booktitle = {2025 33rd Signal Processing and Communications Applications Conference (SIU)},
  pages     = {1-4},
  publisher = {IEEE},
  year      = {2025},
  doi       = {10.1109/SIU66497.2025.11112205},
  url       = {https://ieeexplore.ieee.org/abstract/document/11112205}
}
